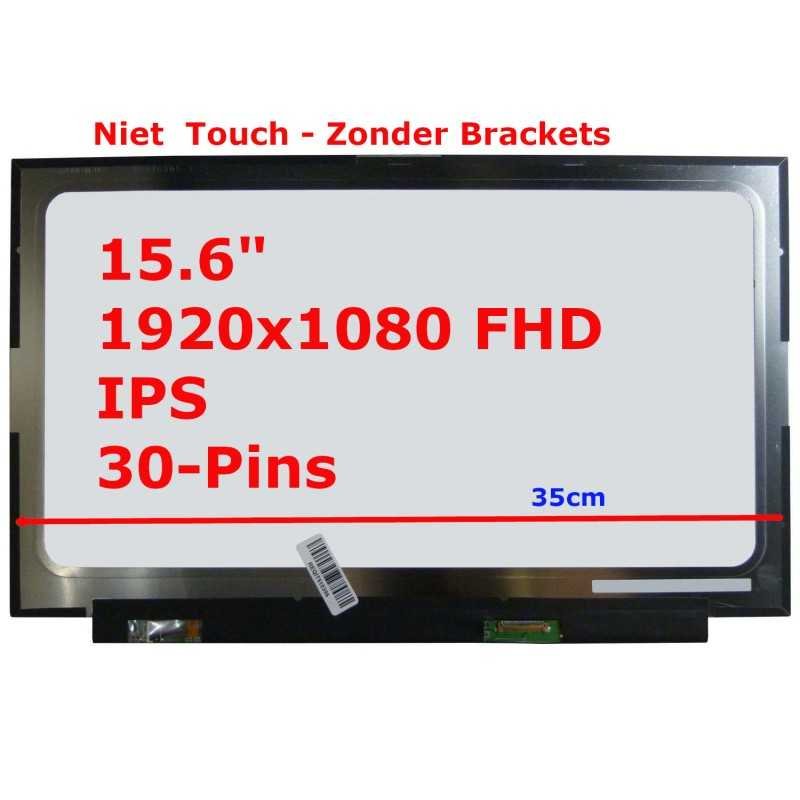

Lenovo ideapad Gaming 3-15IMH05 3-15ARH05 LCD screen FHD 15.6 inch 1920x1080

Part number is a unique alphanumeric code assigned by a manufacturer to a specific product or part. Check the numbers on the part you are looking for will be replaced in this list. Some products have more numbers.

Characteristics of the screen are determined by three important parameters: size, resolution, and connector type. The same laptop model may use different models of screens that differ in size, resolution, and connector type. We would like to point out that notebook manufacturers have been slow to disclose this information, even in cases where they post it on their website - it may not be accurate enough (as we noted earlier), so the most reliable way to select the right screen - is to know the size, resolution and connector type of the old, or just the model number.

1. The screen resolution: Resolution is the maximum number of pixels of your screen(1920x1080 Full HD). Please check the screen resolution before you buy! Screen resolution may be different for the same laptop model. Make sure that the screen you are buying has the same resolution as your old one.
2. The size of a laptop screen: Screen size is measured in inches from corner to corner diagonally
3. The screen connector: There are several different types of video connectors used in laptops screens. For the most part the connectors are not interchangeable. Here are the most common types connectors,
   30-pin eDP
   It is used on screens with resolutions up to 1920 x 1080. If your laptop was manufactured after 2014 and features screen resolution up to 1080p it is likely using this type of connector.
   40-pin eDP(pitch 0.5mm-25mm)
   Used on newer laptops after 2015, the additional pins over the 30-pin eDP connector are needed for higher resolution options such as QHD (2560 x 1440) and even higher of for a built-in (on-cell) touchscreen functionality.
   40-pin Narrow(pitch 0.4mm-20mm):
   Used on newer laptops after 2015, the additional pins over the 30-pin eDP connector are needed for higher resolution of for a built-in (on-cell) touchscreen functionality with pitch 0.4mm.

For old laptops, the screens are attached to the housing with screws, but nowadays it is attached with two double-sided tape. For laptop screen without brackets you need a double sided tape. You can buy them here. Buy double side tape

The refresh rate of a laptop is the number of times per second that the screen refreshes or updates itself. It is measured in Hertz (Hz), and the higher the refresh rate, the smoother and more fluid the visuals appear. The standard refresh rate for most laptop screens is 60Hz, High-refresh-rate gaming laptop displays start at 120Hz and top out (at this writing) at a blistering 480Hz, with popular in-between increments including 144Hz, 165Hz, 240Hz, 300Hz, and 360Hz.
It is possible to buy a screen with a higher refresh rate, but that depends on two things, the old screen connector and laptop graphics card. With a gaming laptop it is probably possible, for example an upgrade from 120 Hz to 144 Hz.

Screen brightness refers to how bright a screen appearsa. NIT is a unit of measurement for brightness – it’s the standard unit of luminance used to describe various sources of light. The higher the number of nits, the brighter the display and more expensive. One nit equals the amount of light emitted by one candela per square meter (1 nt = 1 cd/m²).

It may happen that the specific part number shown on your current screen does not match our screen part number. We will send a compatible model that has at least the same specifications as the original..

By FixLenovo has a Laptop screen 3 dead pixel warranty.

You can your Lenovo ideapad Gaming 3-15IMH05 3-15ARH05 LCD screen FHD 15.6 inch 1920x1080 have it repaired by us, for repair your Lenovo ideapad Gaming 3-15IMH05 3-15ARH05 LCD screen FHD 15.6 inch 1920x1080 by an experienced repairer at a low price.
